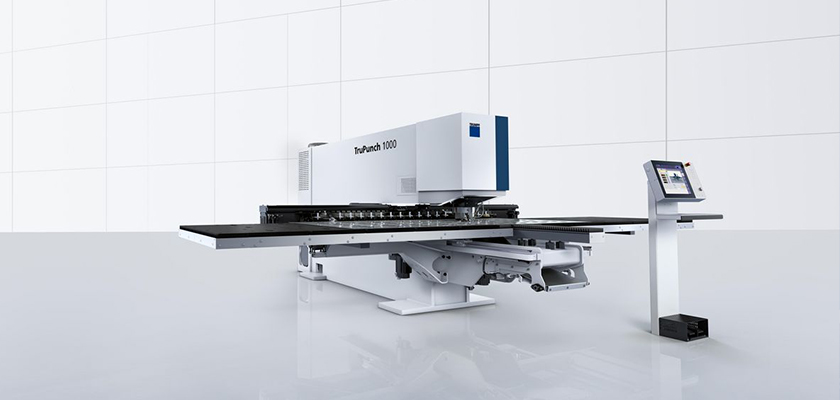

Trupunch 1000



single-services-img-4

Cost-effective entry-level machine

The TruPunch 1000 is the perfect entry to professional punching. The compact machine excels with its high level of processing flexibility: In addition to just punching, you can also use it to form threads, extrude, and bend flanges. You can process midsize sheets completely in one tool setup without repositioning. You can even produce smaller orders and lot sizes economically, quickly and with flexibility.

    Ready for numerous applications

  • The TruPunch 1000 masters all of the relevant applications of a TRUMPF punching machine.
  • Versatile tools

  • TRUMPF offers top quality punching tools such as the MultiTool or the MultiShear slitting tool.
  • Simple operation

  • The intuitive control enables the immediate production of simple and complex parts.
single-services-img-2

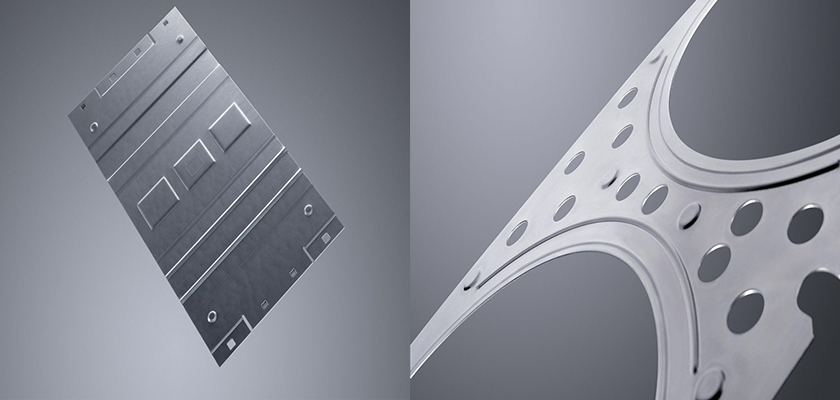

Electronic Component

Produce with flexibility using tools for every application, for example flanges, cups, roller folding. For this component, the following tools were used:

  • Stepping tool
  • Bracket tool
  • Cup tool rectangular and round
  • Offsetting roller tool
  • Pinching roller tool

Workpiece

With the largest tool range in the world, the mechine offers the highest level of processing flexibility. For this worpiece, the following tools were used:

  • Beading roller tool
  • Multicut tool
  • Cup tool
  • Offsetting roller tool
single-services-img-1

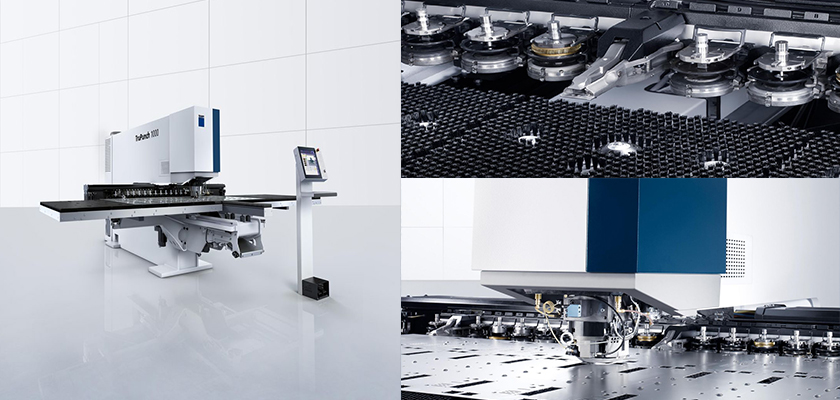

EQUIPMENT

The TruPunch 1000 guarantees you the best part quality with a high level of efficiency. Common cuts lower the amount of scrap and make optimum use of the material.

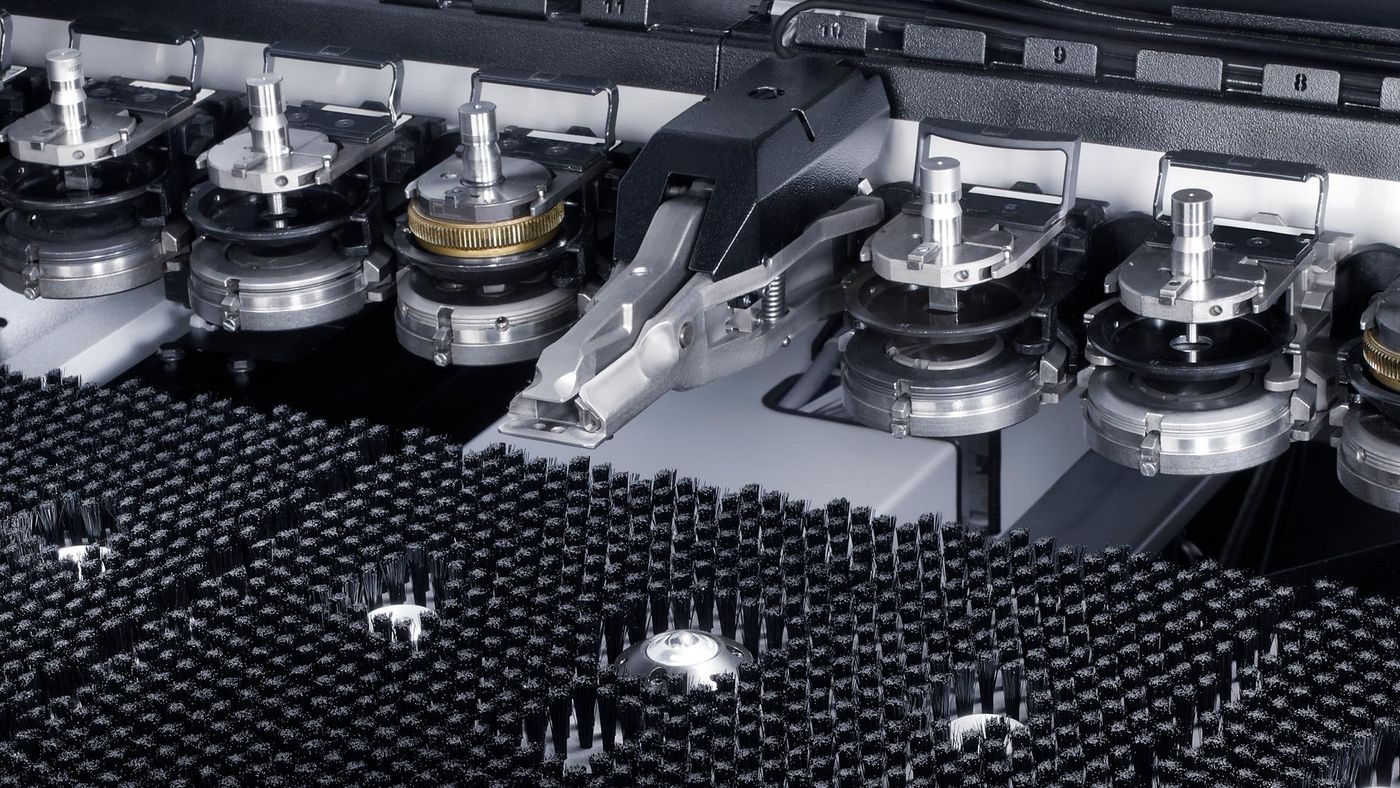

Blank processing benefits package

With the blank processing package, you can also process blanks simply and in a process-reliable way. This is made possible by a second index pin and additional clamp, amongst other things.

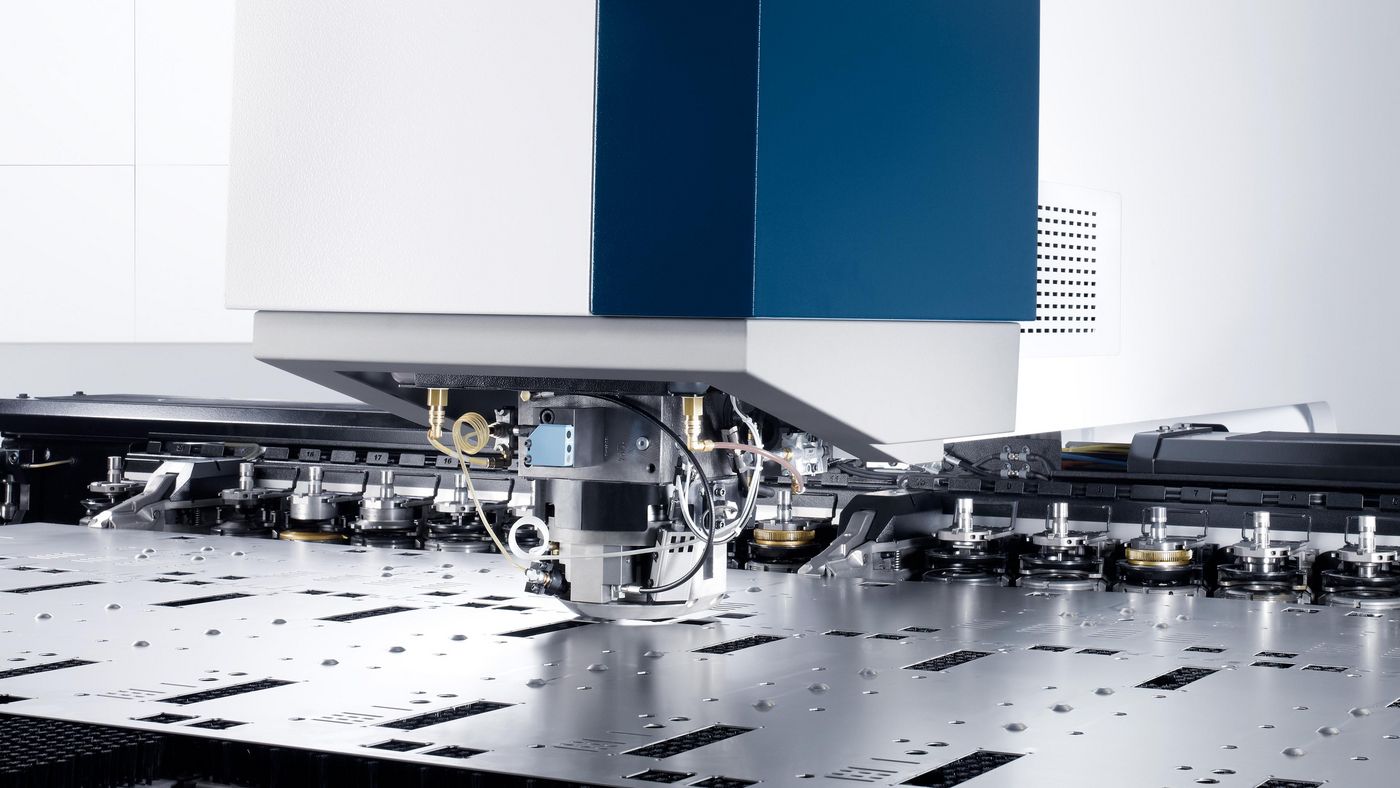

On-Demand Drive

As a result of the On-Demand Drive, the punching head hydraulic system always works to the optimum level. This leads to reduced noise generation during non-productive times and reduces the hydraulic load of the entire system.

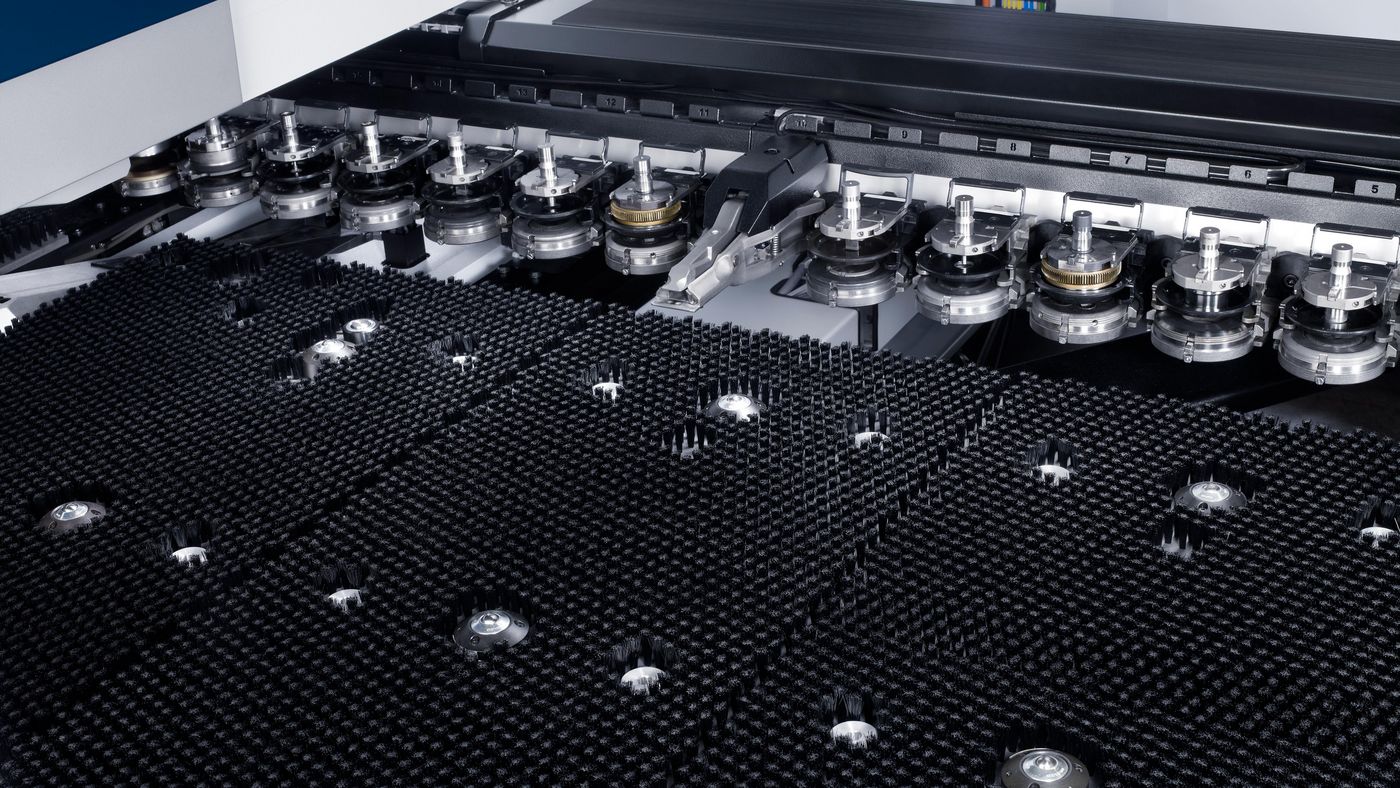

Table equipment

Brush tables are available for gentle material handling.

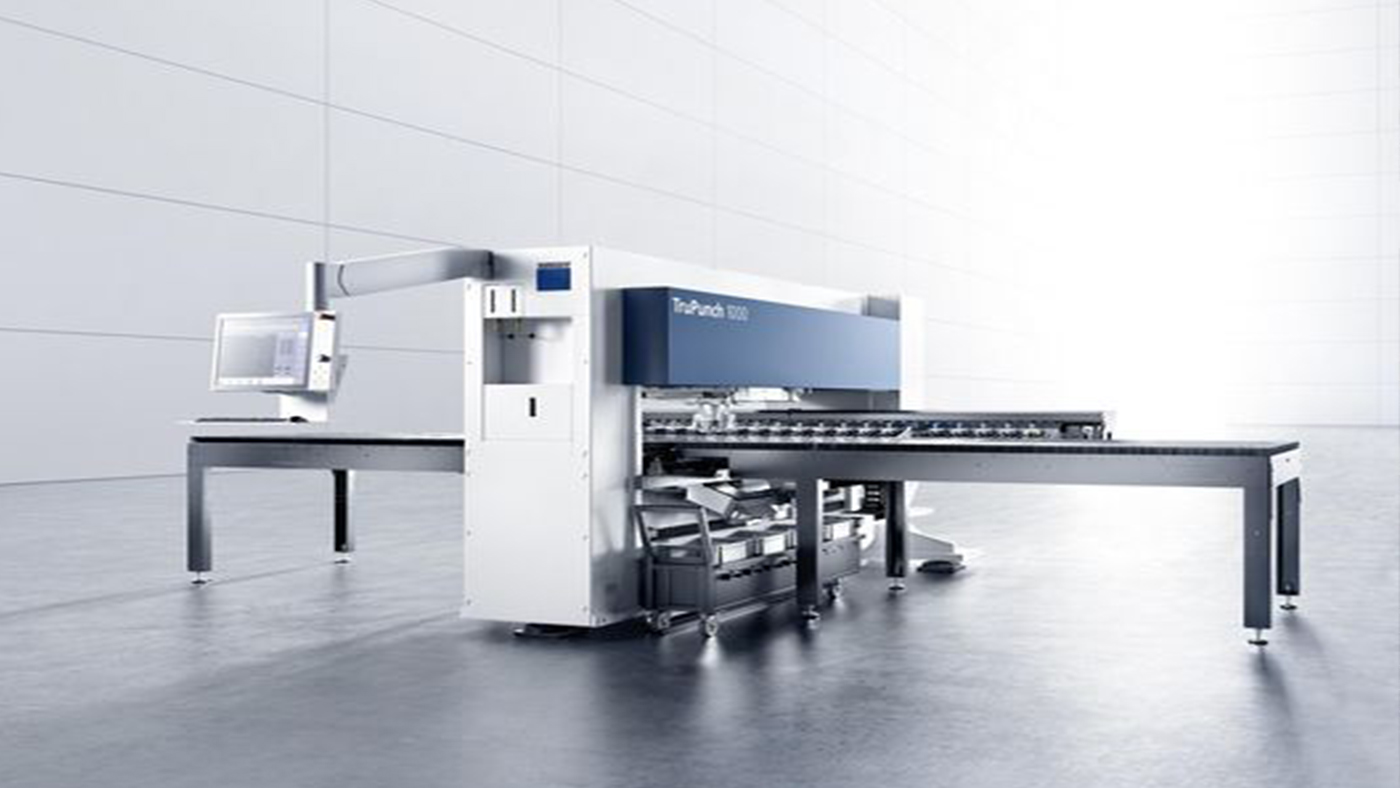

Parts conveyor belt

With the parts conveyor belt, punching parts are ejected in a process-reliable way.




Skeleton-free

TRUMPF is the first manufacturer worldwide to offer punching machines with skeleton-free processing. This innovation saves material and increases process safety

single-services-img-4

TruTops Boost

Construct and program your laser, punching, and combination punch laser machines intelligently with TruTops Boost, your all-in-one 3D solution. Numerous automated processes save you time-consuming routine processes and the joint nesting pool saves time and material. You also always have an overview of all manufacturing orders and order-based work.







Software

The extensive range of TruTops software supports you throughout the entire production process. Control your operational workflow in a simple and targeted manner, from managing your customer orders and purchasing processes to delivery of the produced parts. Through the direct coupling with the machine control, you can keep a constant eye on the status of your orders.

single-services-img-6

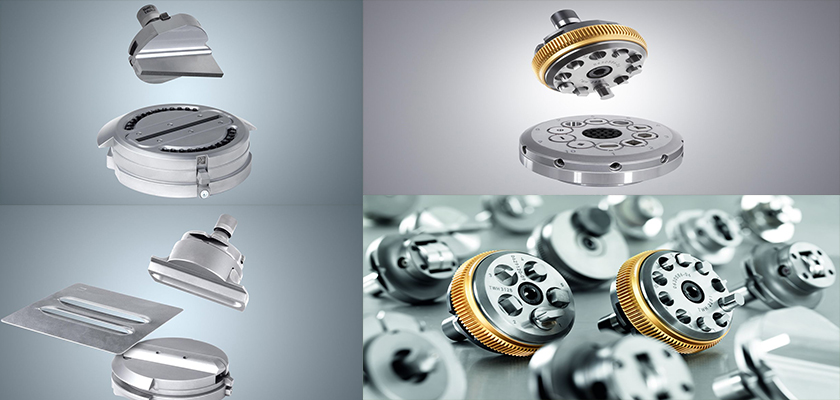

TOOLS

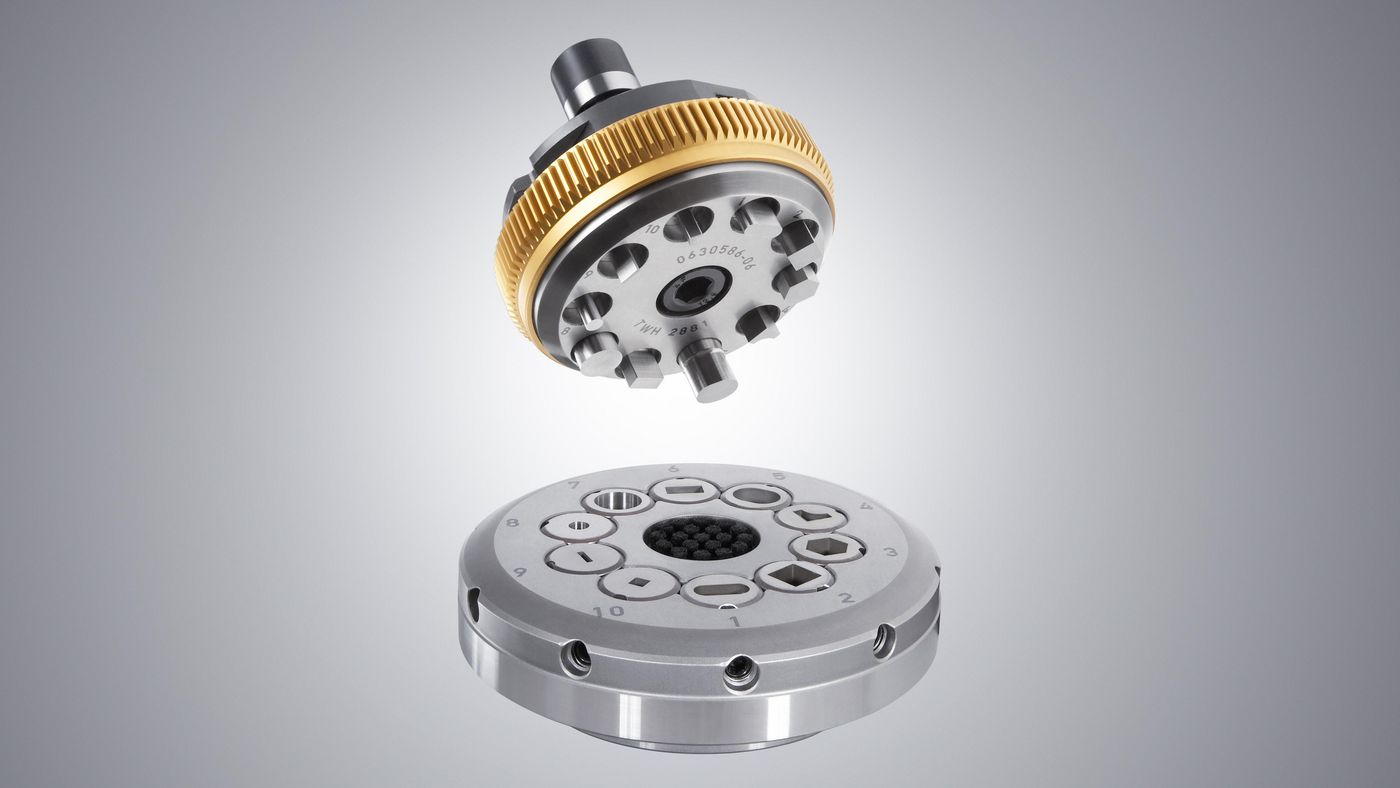

MultiTool


You can boost the productivity of your punching machine with a tool adapter for up to ten inserts – in particular for small punching operations.

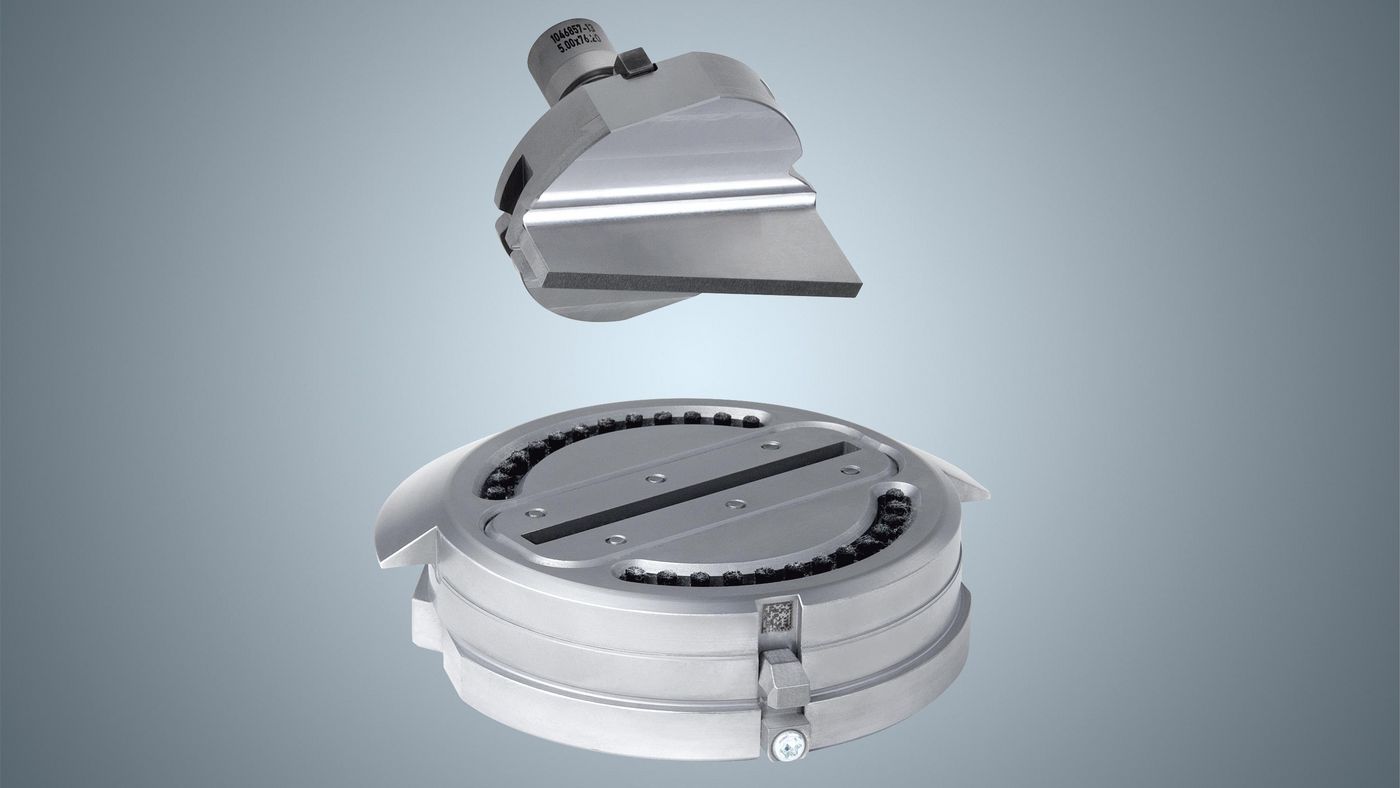

MultiShear


Use our patented cutting technology for outstanding edge quality without nibbling marks. A die with brush inserts also prevents scratches.

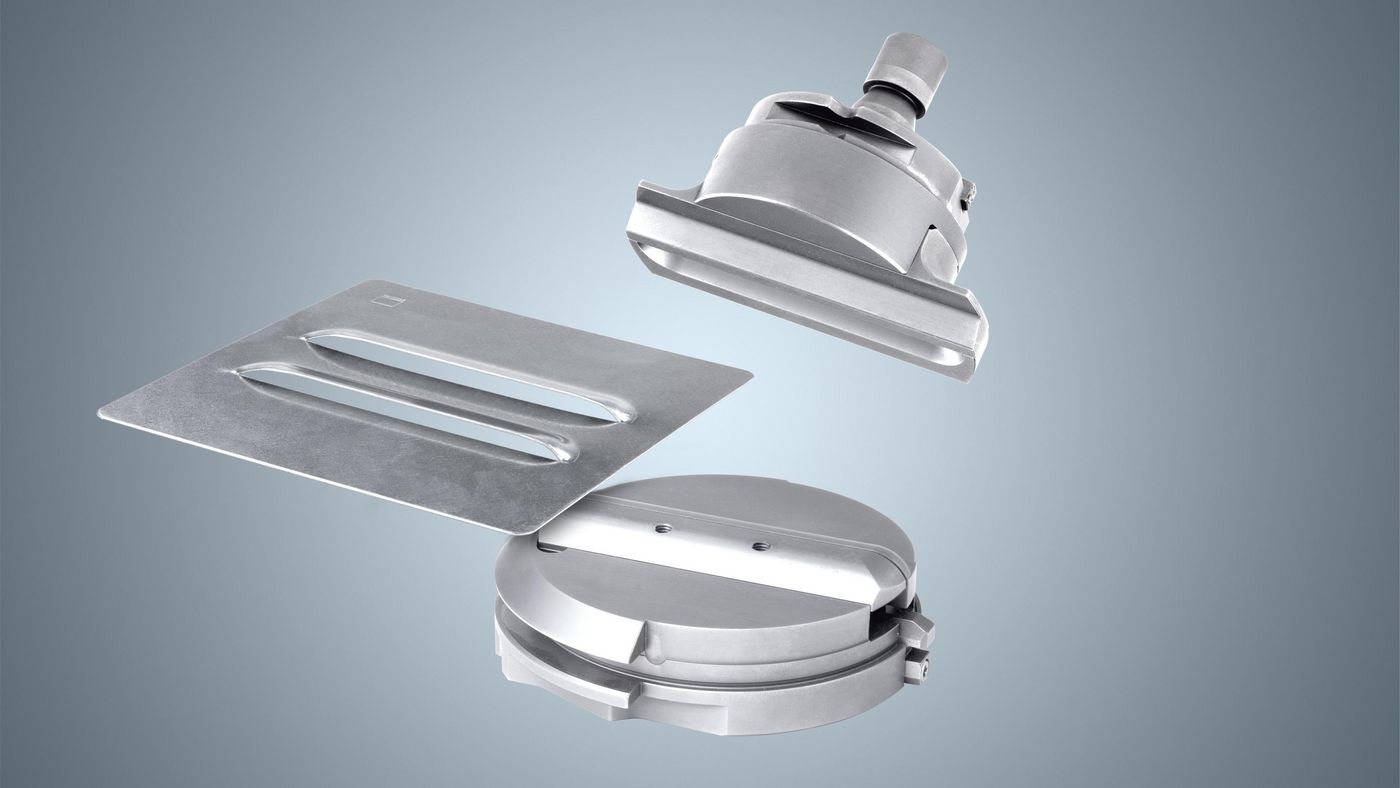

Louver tools size 5


With a length of up to 4 inches, you can take advantage of new sheet metal design options. Processing in just one stroke ensures the highest quality.

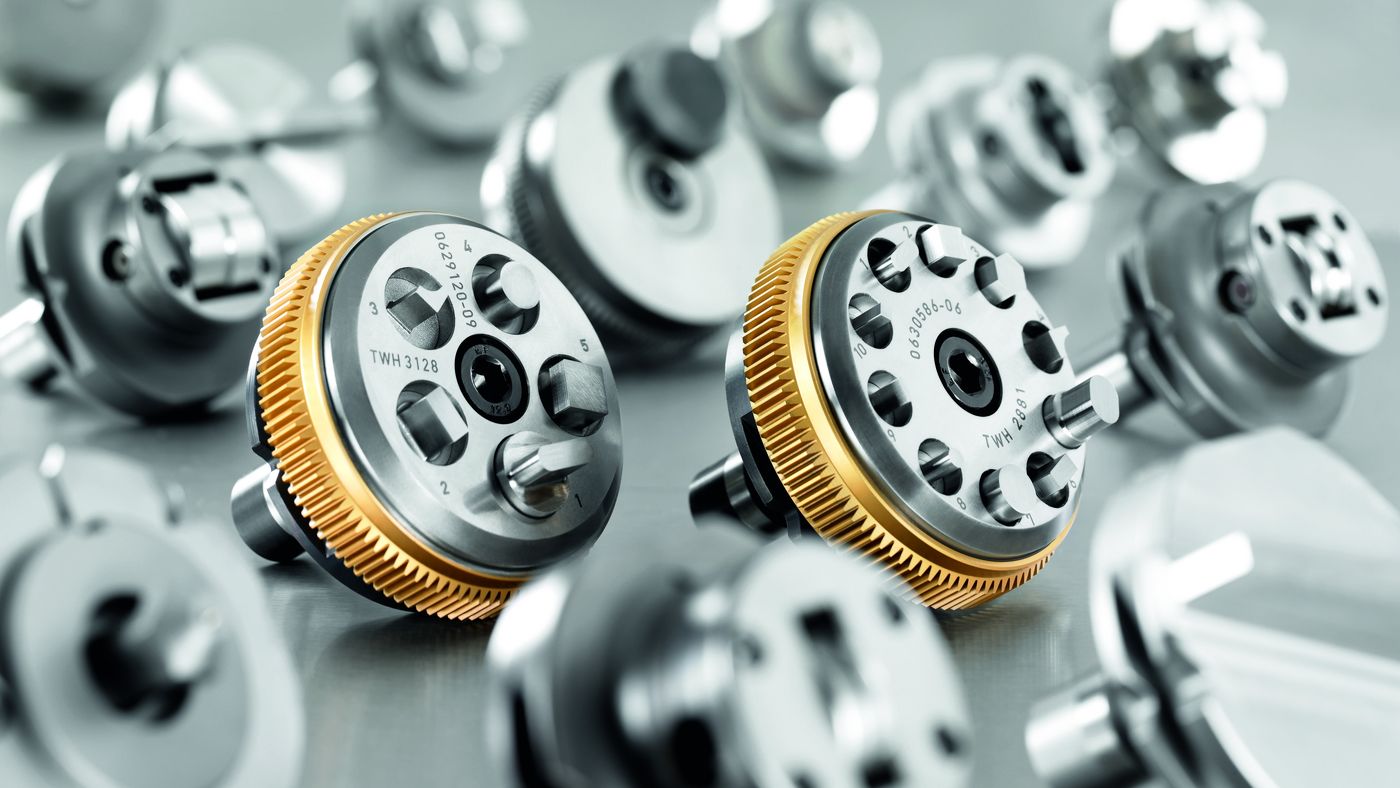

Punching tools at a glance


TRUMPF offers the world's largest range of punching tools on the market. You will find the perfect solution for every punching and forming application.
